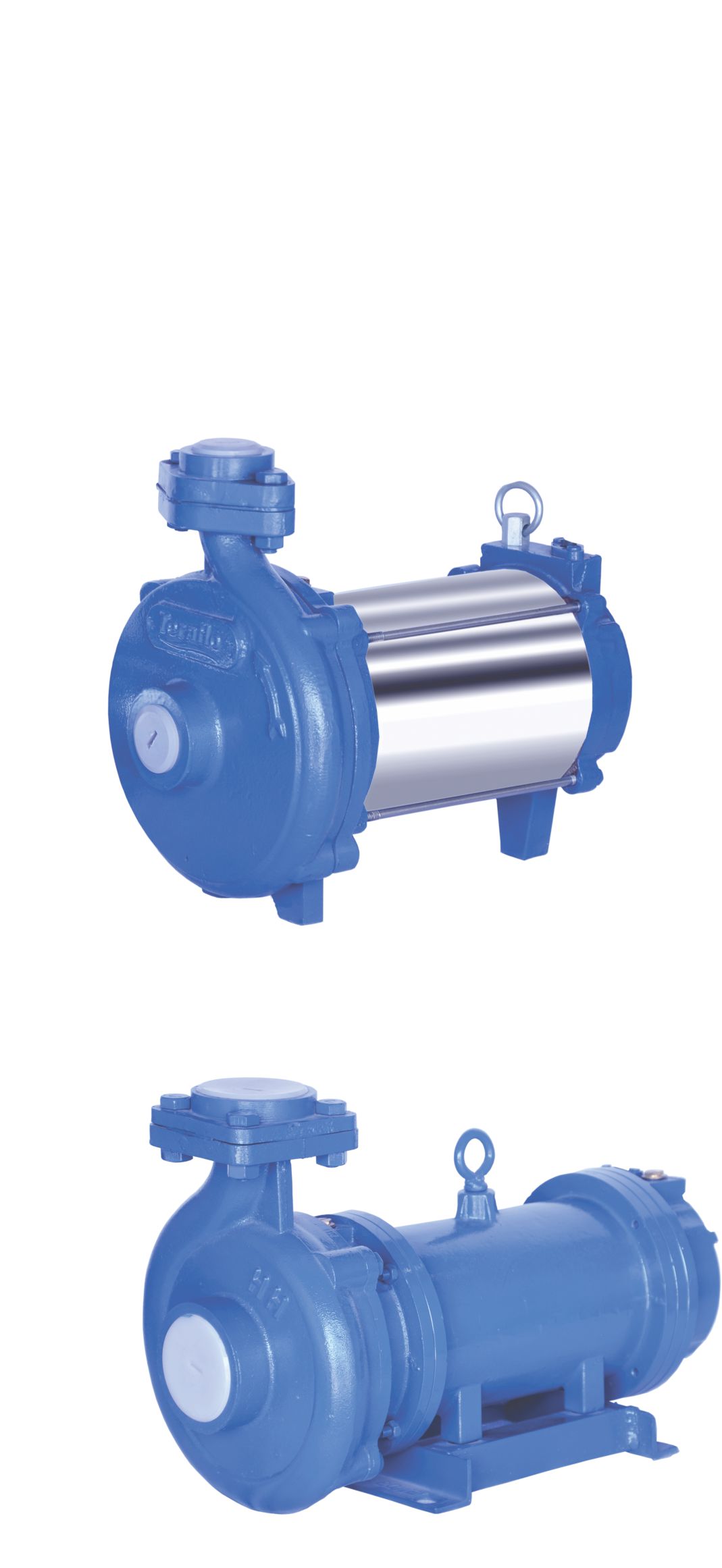

Teraﬂo brand makes highly efficient durable and best Quality Openwell submersible pump.
Stator Tube : Stainless Steel / Cast Iron FG 200 Grade.
Thrust Bearing : Carbon
Impeller : Glass Filled engineering polymer/Cast Iron FG 200
Pump Volute : Cast Iron FG 200 Grade.
- Salient Features
- Material of Construction
- Technical Specifications
- Design for wide voltage range.
- Manufactured using a much sophisticated control process to ensure reliability & Long life of the pump.
- Design for underwater Application.
- Light weight& easy to install.
- Impeller made from glass filled engineer polymer for better life.
- Full Stainless steel stator tube as well as stainless steel shaft.
- Supply with control panel.
- Domestic water supply-Apartment, Building & Hotel
- Canels& Rivers
- Irrigation from openwell where water level fluctuate.
- Head Range : 6 to 68 meter
- Discharge Range : 50 to 2344 LPM
- Motor Rating : 0.5 HP to 5 HP (Single Phase).
0.5 HP to 20 HP (Three Phase).
- Voltage Range : 140V to 250V (1 Phase)
200V to 440V (3 Phase)
Download Openwell Submersible Pump details
